High-Performance DUT Boards and Adapters
PCB Design and Manufacturing for DUT & Adapter Board Test Solutions
DUT boards and adapter boards create the critical first connection between RTI's test sockets and your standard mating interface. Our test interface solutions include ATE boards and interposer PCBs with compression-mounted test sockets that connect seamlessly to DIP and ZIF test sockets, pin-block interfaces, PGA receptacles, edge connectors, and other mating connectors.
Every PCB is custom-designed in-house by our expert engineers and fully assembled to ensure complete compatibility with your equipment, test applications, and performance requirements. Ready to discuss your specific requirements? Get your free quote or download our detailed info sheet to learn more about our capabilities.
▪ Designed by RTI Engineers
RTI stays current with technological advancements in semiconductor testing and adapter board design to be able to offer solutions that incorporate the latest technologies and best practices.
▪ Tailored to Your Needs
Our DUT boards and adapter boards can be customized for unique test configurations, providing flexibility to meet your specific testing requirements while ensuring optimal signal routing for your device's electrical requirements.
▪ Advanced Technical Options
Complex adapter boards can incorporate discrete surface mount components, controlled impedance, matched trace lengths, and more, offering a range of sophisticated solutions for your test application.
▪ Standardized by RTI Designs
Standardized signal routing and pin mapping found on RTI's daughter boards reduce engineering and lead time to keep your testing on schedule.

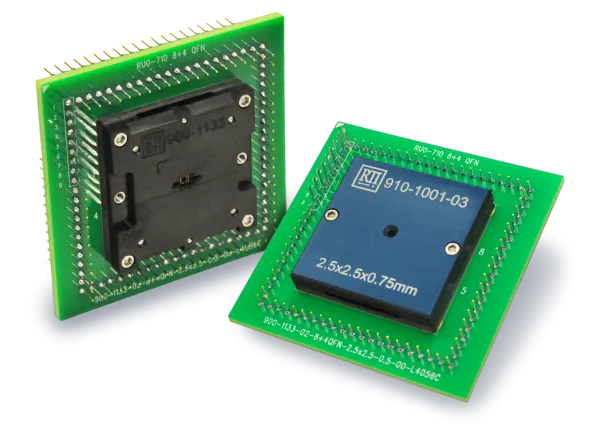

High-Performance DUT Boards and Adapter Boards
PCB Design and Manufacturing for DUT & Adapter Board Test Solutions
DUT boards and adapter boards create the critical first connection between RTI's test sockets and your standard mating interface. Our test interface solutions include ATE boards and interposer PCBs with compression-mounted test sockets that connect seamlessly to DIP and ZIF test sockets, pin-block interfaces, PGA receptacles, edge connectors, and other mating connectors.
Every PCB is custom-designed in-house by our expert engineers and fully assembled to ensure complete compatibility with your equipment, test applications, and performance requirements. Ready to discuss your specific requirements? Get your free quote or download our detailed info sheet to learn more about our capabilities.
▪ Designed by RTI Engineers
RTI stays current with technological advancements in semiconductor testing and adapter board design to be able to offer solutions that incorporate the latest technologies and best practices.
▪ Tailored to Your Needs
Our DUT boards and adapter boards can be customized for unique test configurations, providing flexibility to meet your specific testing requirements while ensuring optimal signal routing for your device's electrical requirements.
▪ Advanced Technical Options
Complex adapter boards can incorporate discrete surface mount components, controlled impedance, matched trace lengths, and more, offering a range of sophisticated solutions for your test application.
▪ Standardized by RTI Designs
Standardized signal routing and pin mapping found on RTI's daughter boards reduce engineering and lead time to keep your testing on schedule.
Product Details & More
Here, you'll find helpful links, PDF downloads for manuals and brochures, and related blog posts. For further assistance, please contact our customer support team.
Here, you'll find helpful links, PDF downloads for manuals and brochures, and related blog posts. For further assistance, please contact our customer support team.
DUT Boards and Adapters for Standard Interfaces
RTI's adapter boards for benchtop and automated curve tracing fixtures use an internally standardized pin mapping process to ensure signal consistency between DUT and tester with each new board design. These solutions are built to work directly with RTI test fixtures using proprietary footprints such as:
SMD (Surface-Mount Device) Test Pads
- Description: Motherboard/Daughterboard designs using pogo-pin block interfaces. Plated over or plated Thru-Hole Vias on the adapter board are positioned in standardized locations to mate with a corresponding pogo pin block on the motherboard.

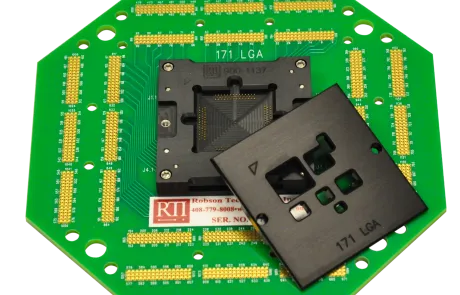

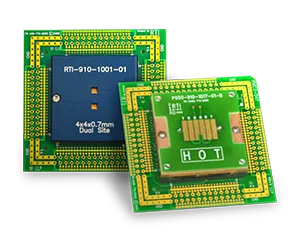

- Examples: RTI's RMC3 semi-custom mini cards and Octopogo series daughter boards align test points to corresponding pin blocks that directly interface with RTI's MultiTrace, MegaTrace and 950 series benchtop fixture bases.

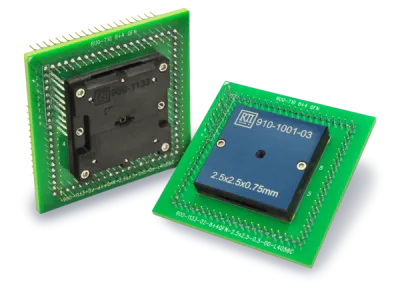

Socketed Interfaces
- Description: These adapters use standardized Pin Grid Arrays and Dual In-line Pin arrays to interface with off the shelf ZIF and DIP sockets on the corresponding fixture. Removable receptacles are used on PGA interfaces for improved serviceability
- Examples: RTI's "Side-by-Side" adapter boards for the MultiTrace ZIF Fixture Box use standard positioning of 128, 448 and 625 pin grid arrays based on the fixture's max pin count. 48pin DIP adapters can position pins directly under or beside the test socket depending on working limitations.

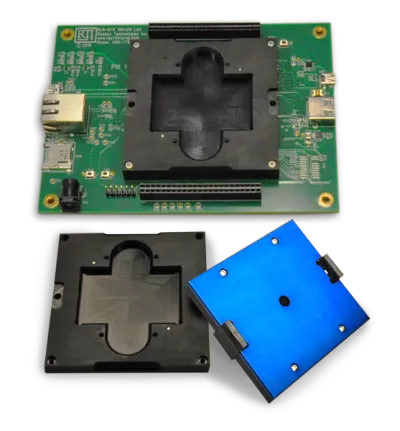

DUT Boards and Adapters for Industry Standard Interfaces
RTI designs customizable adapter boards to directly route signals from test sockets to industry-standard test interfaces. These adapter boards can include complex circuitry, observe manufacturer specific PCB layout requirements, and incorporate multiple connector and interface types like these:
PCB Edge Connectors
Description: Often used in prototype boards and testing setups, these connectors are designed to interface directly with printed circuit boards (PCBs) via edge connectors.
Examples: PCIe edge connectors, DIMM connectors for memory modules.
Test Fixture Interfaces
Description: Test fixtures are often equipped with standard interfaces that connect to test equipment or other systems.
Examples: D-sub connectors, BNC connectors, SMA connectors.
JTAG Interfaces
Description: JTAG (Joint Test Action Group) interfaces are used for boundary-scan testing and debugging. They provide a standardized way to access internal test points of ICs.
Examples: 20-pin JTAG connectors, 10-pin ARM JTAG connectors.
SWD (Serial Wire Debug) Interfaces
Description: Used for debugging and programming microcontrollers, SWD interfaces are a subset of JTAG with fewer pins.
Examples: 4-pin SWD connectors, 2-pin SWD connectors.

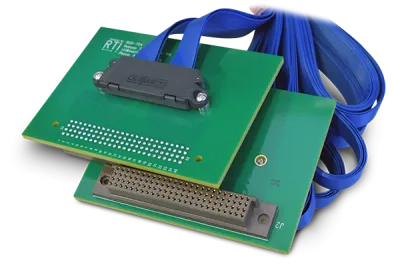

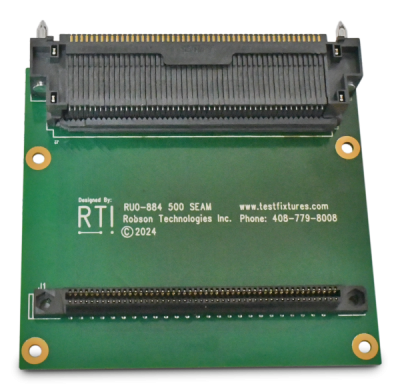

Board-to-Board Connectors
Description: These connectors are used to interface between multiple PCBs, often seen in modular or stacked designs.
Examples: Stackable connectors, mezzanine connectors.
MIL-STD Connectors
Description: Designed for rugged or military applications, these connectors adhere to military standards for durability and performance.
Examples: MIL-DTL-38999, MIL-DTL-26482.

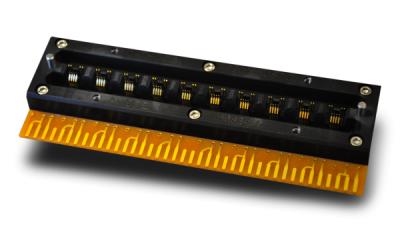

FPC/FFC (Flexible Printed Circuit/Flexible Flat Cable) Connectors
Description: These connectors are used for flexible and compact interconnections, suitable for devices with space constraints.
Examples: 0.5mm pitch FPC connectors, 1.0mm pitch FFC connectors.

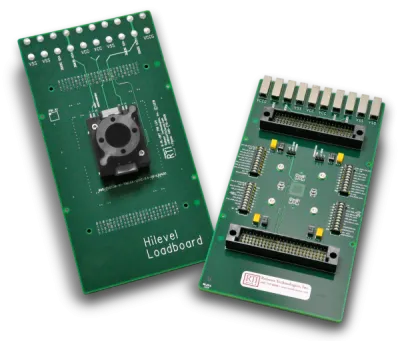

Automated Test Equipment (ATE) Interfaces
Description: These are specific interfaces used with ATE systems for high-volume or high-precision testing.
Examples: DUT interface boards for ATE systems, probe cards for wafer testing.

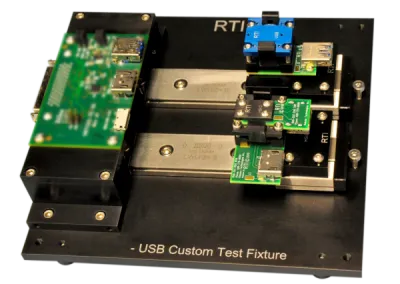

USB Interfaces
Description: USB interfaces can be used for a variety of testing and programming applications, particularly in consumer electronics.
Examples: USB connectors, USB-to-SPI/I2C adapters.
Ethernet Interfaces
Description: Used for high-speed data transfer and communication in testing setups.
Examples: Ethernet connectors, Ethernet test modules.

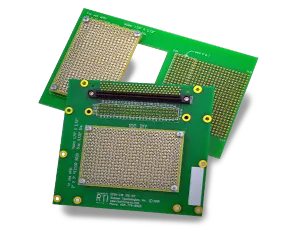

Test Your Prototypes with RTI's Advanced DIY Breakout Boards
At RTI, we understand the demands of professional engineers who require reliable and flexible prototyping platforms for their projects. That's why we've developed our DIY Breakout Boards, meticulously designed to meet the high standards of the engineering community.
Product Overview:
Our DIY Breakout Boards seamlessly integrate the trusted VECTOR 8029 general-purpose plated through hole (PTH) breadboard with RTI's robust R1 or RMLT DUT board base plates. This combination offers a superior platform for prototyping simple yet precise designs, ensuring that your workflow remains efficient and streamlined.
Key Features for Engineers:
- Industry-Standard Compatibility: Our boards, which feature VECTOR 8029 Series 2″x3″ breadboards, are an ideal fit for a wide range of engineering applications. The industry-standard PGA footprint and 100-pin connectors ensure that interfacing with your designs is straightforward and hassle-free.
- Precision and Control: Our boards allow you to wire your circuitry manually to PGA or connector pins, providing the precision and control needed for complex designs. This manual wiring capability ensures that your prototypes are as accurate as possible.
- Enhanced Access and Customization: The openings in RTI's PCB bases allow for backside access, making it easier to make modifications and adjustments during the prototyping process. We offer custom connectors and via positioning, so you can tailor the board to fit your specific project requirements.
- Engineered for Stability: The DUT board includes mounting holes, allowing you to install your completed fixture on standoffs. This feature ensures a stable and secure setup, essential for any professional engineering environment.
- Compatibility with Industry Standards: Our boards are compatible with 2.54mm pitch surface mount test sockets, making them easily integrable with your existing equipment and tools.
Why Choose RTI's DIY Breakout Boards? As an engineer, you need tools that are as reliable and precise as the designs you create. RTI's DIY Breakout Boards provide a robust platform that supports your engineering workflow from concept to completion, allowing you to prototype with confidence.
Get Started Today! Explore the capabilities of RTI's DIY Breakout Boards and discover how they can enhance your prototyping process. We designed our solutions with engineers in mind to help you bring your ideas to life with precision and efficiency.

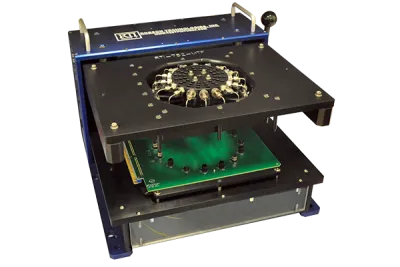

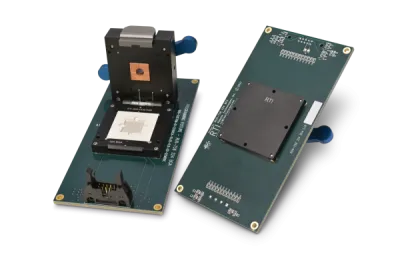

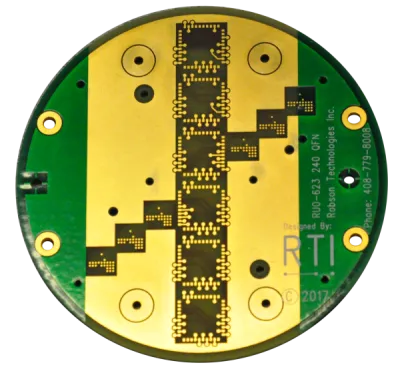

RTI's DUT Boards & Adapters Gallery
