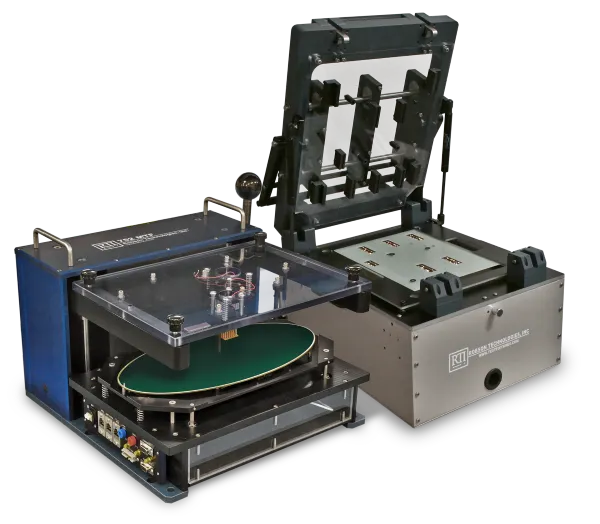

PCB Test Fixtures for In-Circuit and Functional Test
RTI builds PCB test fixtures to match your board layout and test method. From single assemblies to stacked boards and full panels, our fixtures provide accurate alignment and consistent contact on any side of the PCB. Our fixture designs can support in-circuit, functional test, and engineering test applications.
Options such as manual or pneumatic actuation, precision routing boards, and modular pin blocks ensure dependable connections and repeatable results. For more complex setups, shielding and specialized contact methods can be built in, giving you a complete test solution engineered for accuracy, durability, and ease of use.
PCB Test Fixtures for In-Circuit and Functional Test
RTI builds PCB test fixtures to match your board layout and test method. From single assemblies to stacked boards and full panels, our fixtures provide accurate alignment and consistent contact on any side of the PCB. Our fixture designs can support in-circuit, functional test, and engineering test applications.
Options such as manual or pneumatic actuation, precision routing boards, and modular pin blocks ensure dependable connections and repeatable results. For more complex setups, shielding and specialized contact methods can be built in, giving you a complete test solution engineered for accuracy, durability, and ease of use.
Comprehensive Fixture Design, Without Compromise
Optimized Signal Routing
Our PCB test fixtures feature an internal routing board to carry signals from your DUT to any connector or interface of choice, positioned on the fixture where you need them most.
User-Friendly Operation
With options like manual lever or pneumatic piston actuation, our fixtures are designed for ease of use, delivering consistent and repeatable results with minimal operator effort.
Precision and Reliability
Featuring bed-of-nails-style modular pin blocks and keyed alignment features, our designs offer precise positioning and true vertical compression while contacting test points on the top and bottom of the unit under test.
Integrated Functionality
Incorporate advanced features like built-in single-board computers, device programmers, RF shielding, and custom contact methods to create a comprehensive, stand-alone testing solution.
Comprehensive Fixture Design, Without Compromise
Optimized Signal Routing
Our PCB test fixtures feature an internal routing board to carry signals from your DUT to any connector or interface of choice, positioned on the fixture where you need them most.
User-Friendly Operation
With options like manual lever or pneumatic piston actuation, our fixtures are designed for ease of use, delivering consistent and repeatable results with minimal operator effort.
Precision and Reliability
Featuring bed-of-nails-style modular pin blocks and keyed alignment features, our designs offer precise positioning and true vertical compression while contacting test points on the top and bottom of the unit under test.
Integrated Functionality
Incorporate advanced features like built-in single-board computers, device programmers, RF shielding, and custom contact methods to create a comprehensive, stand-alone testing solution.
Product Details & More
Here, you'll find helpful links, PDF downloads for manuals and brochures, and related blog posts. For further assistance, please contact our customer support team.
Here, you'll find helpful links, PDF downloads for manuals and brochures, and related blog posts. For further assistance, please contact our customer support team.
Out-of-the-Box; Onto the Bench PCB Test Fixture Solutions
Our fully integrated PCB test fixtures are shipped to you in a "ready-to-test" condition. Simply remove them from the shipping container, put them on the bench, connect your tester and equipment, calibrate and start testing straight away.
Specialized Contact Methods and Shielding

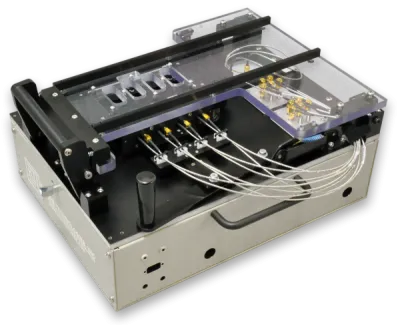

We offer a range of customizable and modular bed-of-nails contact methods to probe test points across the entire UUT including the top, bottom and sides. Mating connector panels with high-speed connectors or shielded coaxial cables can be built into the test bed with regulated lateral motion to engage the UUT from the side.

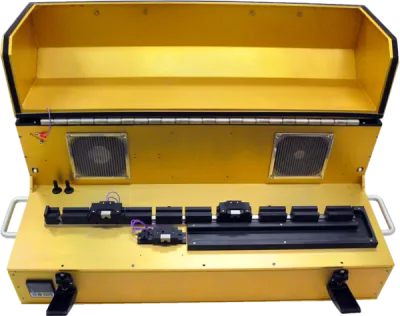

Our fixtures also feature RF shielding techniques to protect against internal or external EMI/RF interference. Conductive alodine-plated panels, gasketing, and mesh fan screens with Faraday cage principles ensure your test environment stays controlled to your specification.
Precision Engineering for Comprehensive Testing
Our engineering team collaborates with you from the outset, using your GERBER or STEP file to identify critical test points, keep-out areas, and other essential aspects of your DUT and test configuration. Sample UUT boards are required for multi-point quality assurance prior to shipping.

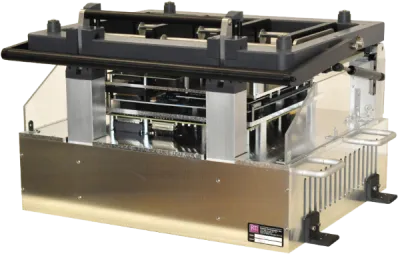

Our bed-of-nails style test beds complete with floating trays and guide-pins ensure precise alignment with your Unit Under Test (UUT), providing reliable contact with test points and/or connectors on your device, even in complex multi-board stack-ups.
Versatile Solutions for In-Circuit and Functional Test

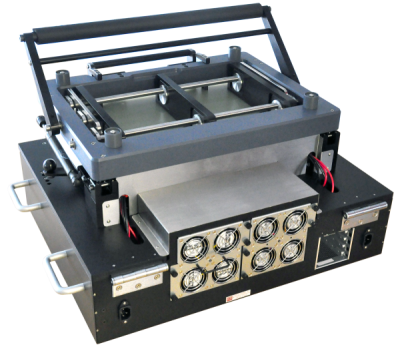

Our PCB test fixtures are ideal for intricate and multi-board test setups. These functional test fixtures feature a two-stage lid closing process with a cam system that ensures true-vertical compression across the surface of your unit under test.
The inclusion of secondary and tertiary driver boards along with any other hardware dependencies built directly into the fixture makes RTI's PCB test fixtures perfect for stand-alone in-circuit and functional test processes.
Popular Options
Custom Options
Custom Contact Methods:
RF Shielding:
Connector Savers:
For more information about our connector savers, please see our info sheet here.
