Improve Your Electrical Testing Capabilities with the Manual Switch Box
Experience the versatility and efficiency of the 96-channel manual switch box, perfect for various electrical bench test applications. Equipped with banana jack connectors and 3-position toggle switches, the manual curve tracer enables seamless integration and precise control in testing. Compatible with 100-pin Yamaichi or 32-pin IDC connectors, this switch box effortlessly connects to your DUT or adapter board for curve tracing.
▪ Versatile Connectivity
Banana jack connectors make it easy to connect to binding posts, ensuring secure and reliable setups for all your testing requirements.
▪ Precise Control
The 3-position toggle switches enable efficient pin biasing between V+, V-, and no-connection, offering flexibility for different testing scenarios.
▪ Scalability
Side-by-side configuration of multiple switch boxes allows you to handle complex setups and extend your testing capabilities.
▪ User-Friendly Design
The durable design is crucial for electrical engineers, lab technicians, and R&D teams who require extensive use.
Improve Your Electrical Testing Capabilities with the Manual Switch Box
Experience the versatility and efficiency of the 96-channel manual switch box, perfect for various electrical bench test applications. Equipped with banana jack connectors and 3-position toggle switches, the manual curve tracer enables seamless integration and precise control in testing. Compatible with 100-pin Yamaichi or 32-pin IDC connectors, this switch box effortlessly connects to your DUT or adapter board for curve tracing.
▪ Versatile Connectivity
Banana jack connectors make it easy to connect to binding posts, ensuring secure and reliable setups for all your testing requirements.
▪ Precise Control
The 3-position toggle switches enable efficient pin biasing between V+, V-, and no-connection, offering flexibility for different testing scenarios.
▪ Scalability
Side-by-side configuration of multiple switch boxes allows you to handle complex setups and extend your testing capabilities.
▪ User-Friendly Design
The durable design is crucial for electrical engineers, lab technicians, and R&D teams who require extensive use.
Product Details & More
Here, you'll find helpful links, PDF downloads for manuals and brochures, and related blog posts. For further assistance, please contact our customer support team.
Here, you'll find helpful links, PDF downloads for manuals and brochures, and related blog posts. For further assistance, please contact our customer support team.

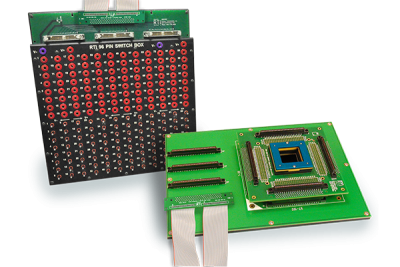

Manual Switch Box
RTI's manual switch box is a versatile and essential tool for a variety of electrical bench test applications. Designed for both powered and unpowered curve tracing, this low-cost solution features a robust configuration that includes 96 channels, banana jack connectors, and 3-position toggle switches for each I/O. The switch box seamlessly interfaces with DUT boards or adapter boards using ribbon cables with mating 100-pin Yamaichi or 32-pin IDC connectors, ensuring reliable and secure connections. The design supports scalability, allowing multiple switch boxes to be used together for devices with extensive I/O requirements.
Additional Hardware Features:
- 96 Pin Support: Each switch box supports up to 96 pins, offering extensive testing capabilities per unit.
- Versatile Connectivity: Easily connect external power supplies, instruments, signals, and more to expand your testing setup.
- Configurable Options: Configurable for powered curve tracing, IDDQ measurements, and various other testing applications.
- Optional Binding Post Version: Available in an optional binding post version for added flexibility.
- Custom Overlay Panels: Custom laser engraved overlay panels allow for the personalization of switch numbers and names, ensuring clarity and ease of use.

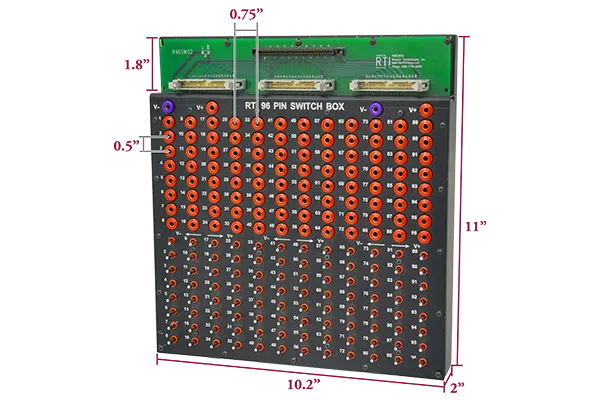

- Standard Dimensions: The switch box features standard dimensions of 10.5"x11"x2", making it compact and easy to integrate into your testing environment.
Test Applications
Our test applications cover a variety of needs to ensure you get the most accurate and reliable results. With unpowered curve tracing, you can efficiently measure against ground pins for dependable outcomes. Powered curve tracing, when paired with bench power supplies, offers precise results, perfect for different testing scenarios. We also cater to unique testing needs with custom analog measurements for mixed-signal devices. Plus, our microscope fixturing makes it easy to position devices under a microscope for optical fault localization tests, boosting both accuracy and ease of use.
Compatible Fixtures for the Manual Switch Box
Versatile and Reliable Fixture Options
The manual switch box is designed to be compatible with a wide range of fixtures, accommodating diverse testing needs and setups. This flexibility ensures that you can efficiently and accurately conduct tests on various devices, regardless of their specifications.

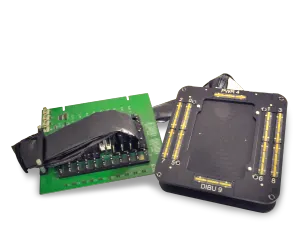

950 Series Fixture
950 Series Fixture with Mini-Card DUT with Socket
A standout choice among users, the 950 series fixture is celebrated for its robust design and versatility. It can easily accommodate different types of devices and tests, making it an ideal option for many standard testing applications. The 950 series provides a reliable and durable solution, ensuring consistent performance and ease of use in various testing scenarios. Mini cards and Extended mini cards support 1.5 inch sockets and are durable because they have no pins to break off.

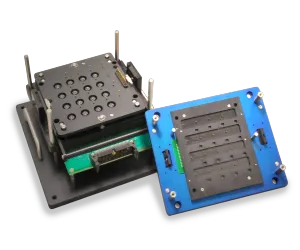

Custom Fixtures
Custom fixtures are available for a range of test situations. These made-to-order solutions are tailored to fit specific testing scenarios, ensuring precision and ease in testing specialized or uncommon devices and packages. Custom fixtures Are often permanently mounted on a tool as a test fixture or on a microscope stage enabling quick change out of the DUT boards while maintaining benchtop compatibility.
Whether you choose the popular 950 series fixture or opt for custom solutions, the manual switch box offers a flexible and reliable foundation for your testing processes. This compatibility enhances both efficiency and accuracy, ensuring that you can meet all your testing requirements with confidence.
Compatibility Adapters

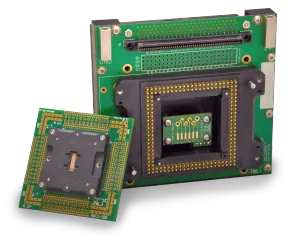

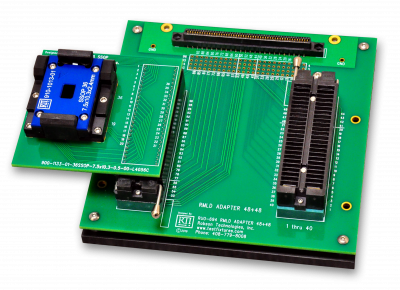

DIY Adapters

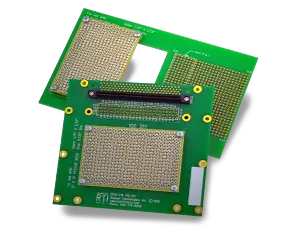

RTI's DIY Breakout Boards offer engineers unparalleled flexibility and control in their circuit design projects. These breakout boards are designed to seamlessly integrate into complex setups by combining the reliable VECTOR 8029 plated through hole (PTH) breadboard with our RTI R1 or RMLT DUT board base plates. The industry-standard PGA footprint and 100-pin connectors allow for straightforward and precise manual wiring, giving engineers the ability to tailor connections to meet specific project needs.
Built with a focus on accessibility and customization, RTI's boards feature openings in the PCB bases for easy backside access, making it simple to adjust or modify connections as required. The boards are compatible with 2.54mm pitch surface mount test sockets, ensuring smooth integration with existing tools and components. Whether you need to wire directly to PGA or connector pins, RTI's breakout boards provide the reliability and precision engineers need to achieve optimal performance in their circuit designs.
Advanced Configurations for Manual Switch Box
For devices with over 96 I/Os, multiple switch boxes can be linked to manually bias each signal, with each box handling a separate 96-pin bank on the device. Universal and dedicated adapter boards enhance cable management and enable custom signal routing between the DUT and its connector. Custom removable overlays simplify setup and operation by uniquely identifying each switch and banana jack, making it user-friendly when using multiple switch boxes.
Binding Posts

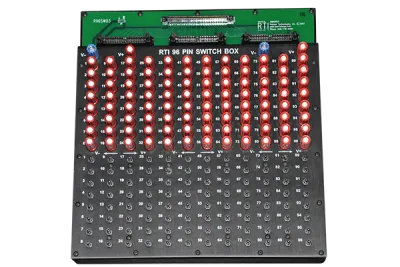

Manual switch box with binding posts (red)
With the binding posts on the manual switch box, you have a versatile solution for connecting a wide range of wires and tools. They can hold loose wires without connectors by trussing the wire to the binding post that is then inserted into the switch box. You can use this flexibility to bypass or shorten connections between pins or introduce loose wire signals, enabling adaptable configurations for different testing requirements.
R1, R2, and R4 DUT Board Configurations

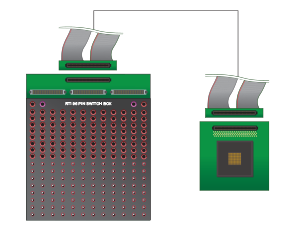

A DUT board with one or more 96-channel 100-pin connector cable directly to the manual switch box. Plated thru-holes for manual wiring of each I/O are located close to the onboard connector. Compatible with all RTI test sockets and most 3rd party test sockets.

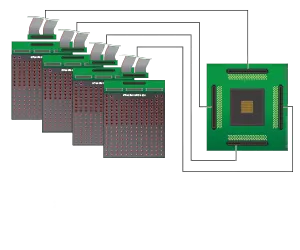

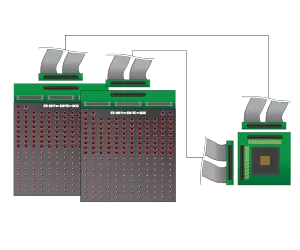

For example; A DUT board with two or four 96-channel 100-pin connectors cables directly to two or four manual switch boxes. Standoffs between the DUT board and base plate allow for socket and cable clearance when the board is turned over to perform backside test. Compatible with RTI's low-profile FA test sockets.
Custom configurations of 6, 8 or more connectors are possible but if you have that many pins, RTI probably has a more efficient fixture system to offer.
Optional Accessories for Manual Switch Box
Streamlined Testing with Custom Overlay Panels

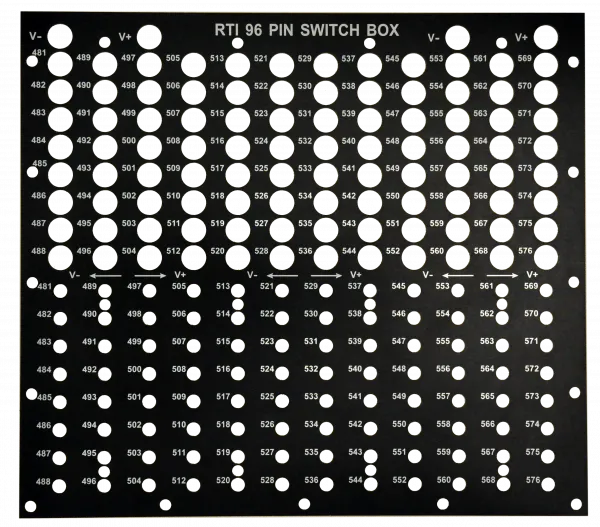

Optimize your RTI manual switch box experience with our custom overlay panels. Designed to enhance efficiency and accuracy, these panels are essential for users who require precise identification and easy configuration during tests.
Overlay panels offer a way to relabel the switches on the switch box making it easier to navigate to the pin of interest. Overlay panels just drop into place and may be retained with hook and loop fasteners. Panels are made of laser-engraved, anodized aluminum panels and may be labeled on one or both sides.
Key Features:
- Customizable Identification: Our overlay panels can be tailored with pin numbers greater than 97, BGA names, or specific signal names. This customization ensures that each panel meets your unique testing requirements.
- Compatibility: These panels are particularly beneficial for mini cards and R1 type DUT boards. They are especially effective when used with alignment plates and universal BGA orWLCSP sockets, ensuring seamless integration into your existing setup.
- Time-Saving: By providing clear, on-tool identification, overlay panels help users stay focused on their tasks without needing to refer to printed documentation. This feature significantly reduces the time spent on setup and adjustments.
- Reduced Confusion: Custom overlay panels eliminate the risk of pin misidentification, a common issue during complex testing procedures. By clearly marking each switch and banana jack, these panels ensure accurate and efficient operation under various test conditions.
Investing in custom overlay panels for your RTI manual switch box not only enhances the precision of your tests but also streamlines your workflow, making your testing environment more organized and user-friendly

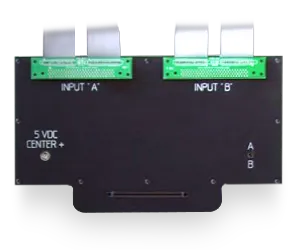

Efficient Switching with the A/B Relay
Enhance the functionality of your RTI manual switch box with the optional A/B relay accessory. Designed for rapid switching between two DUT boards, the A/B relay streamlines your testing processes, making it more efficient and versatile.
Key Features:
- Rapid Switching: The A/B relay allows for quick and seamless transition between two DUT boards, significantly reducing downtime and increasing productivity during tests.
- Power Requirements: This accessory operates with a 5V, 2A power supply, ensuring consistent and reliable performance.
- 2 Pole Relays: Equipped with 2 pole relays, the A/B relay provides robust switching capabilities, maintaining the integrity and accuracy of your test configurations.
- Master Switch: The included master switch allows you to control the switching process with ease, providing a straightforward user experience.
- Interface Compatibility: The relay interfaces with a 96-pin cable, ensuring compatibility and easy integration with your existing manual switch box setup.
By incorporating the A/B relay into your testing setup, you can achieve faster, more efficient transitions between DUT boards, enhancing the overall effectiveness and flexibility of your electrical bench tests. If you are using an old Analog curve tracer, this is an essential accessory.
Dedicated DUT Boards for the Manual Switch Box
Seamless Integration with Dedicated DUT Boards
RTI's manual switch boxes are designed to seamlessly integrate with any device-specific DUT board that features a 96-channel Yamaichi connector. This compatibility ensures a wide range of testing possibilities, enhancing the flexibility and efficiency of your testing setup.
R1 through R4 Series DUT Boards

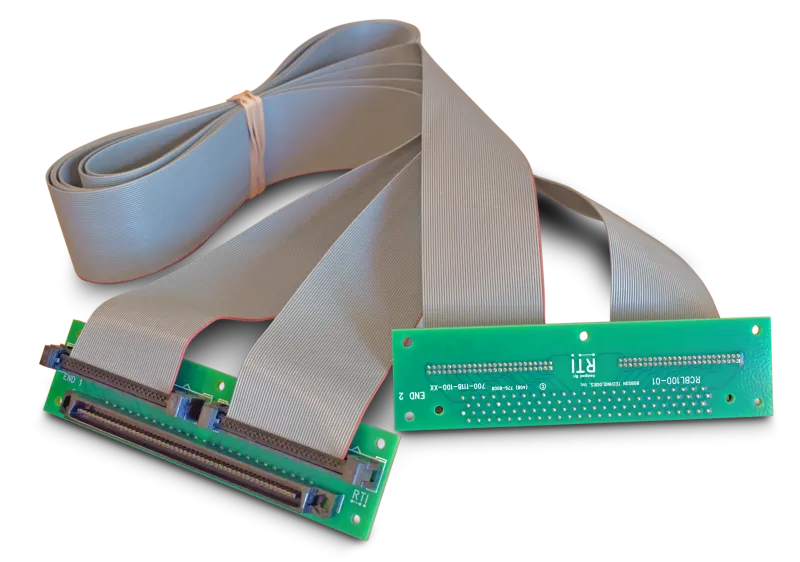

The R1 through R4 series of DUT boards are among the most popular choices for users. These dedicated DUT boards connect to the switch box using an extended ribbon cable, providing a reliable and straightforward connection. The R-series boards are known for their robust design and versatility, making them suitable for a variety of testing applications.
Universal Adapter Boards
Universal Adapter Boards serve as an effective load board interface for the R-series dedicated DUT boards. This setup allows for rapid swapping of DUT boards, thanks to the mating 96-channel connector installed on the bottom of each dedicated board. This feature significantly reduces downtime and enhances the efficiency of your testing process.

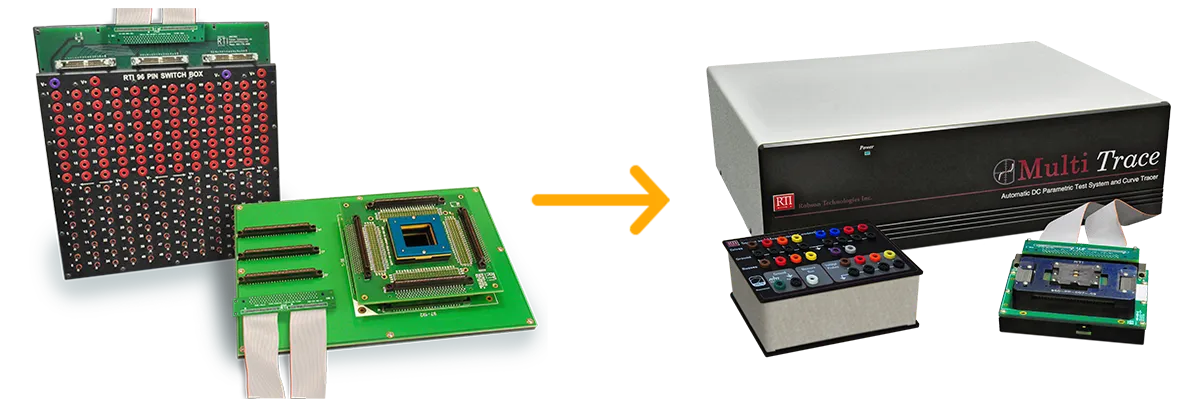

Seamless Upgrade to Automated Curve Tracers
Transitioning from manual to automated testing has never been easier with RTI's MultiTrace system. Most DUT boards and fixtures you use with our manual switch boxes are fully compatible with MultiTrace, allowing for a seamless upgrade. As your testing needs expand, simply add more switch boxes or upgrade to our MultiTrace Curve Tracer.
