RSK Series Breakout Test Fixtures
Device Inspection Breakout Fixtures for Any Test Environment
The RSK Series breakout test fixtures offer a streamlined solution for device inspection, allowing for both topside and backside access to your DUT. Whether you're working at a bench, using a probe station, or operating high-end inspection tools, these semi-custom breakout boards meet your needs with ease. Built for hand testing, failure analysis, and advanced inspection methods, the RSK Series breakout test fixtures combine simplicity with robust functionality, making them an essential addition to any lab requiring reliable device inspection fixtures.
▪ Comprehensive Testing Options
Includes features like heater blocks for temperature control and shorting connectors for rapid diagnostics, ensuring thorough testing.
▪ Efficient Design
The 1.5″ semi-custom test socket and optional thumb screw assembly enable fast configuration changes, saving setup time.
▪ Customizable and Portable
With options for standard or custom cable lengths and standoff configurations, the RSK Series fixtures are highly portable and easily tailored to specific lab environments.
▪ Versatile Device Compatibility
Adaptable to various testing needs, supports up to 384 channels for any WLCSP or packaged device footprint.
RSK Series Breakout Test Fixtures
Device Inspection Breakout Fixtures for Any Test Environment
The RSK Series breakout test fixtures offer a streamlined solution for device inspection, allowing for both topside and backside access to your DUT. Whether you're working at a bench, using a probe station, or operating high-end inspection tools, these semi-custom breakout boards meet your needs with ease. Built for hand testing, failure analysis, and advanced inspection methods, the RSK Series breakout test fixtures combine simplicity with robust functionality, making them an essential addition to any lab requiring reliable device inspection fixtures.
▪ Comprehensive Testing Options
Includes features like heater blocks for temperature control and shorting connectors for rapid diagnostics, ensuring thorough testing.
▪ Efficient Design
The 1.5″ semi-custom test socket and optional thumb screw assembly enable fast configuration changes, saving setup time.
▪ Customizable and Portable
With options for standard or custom cable lengths and standoff configurations, the RSK Series fixtures are highly portable and easily tailored to specific lab environments.
▪ Versatile Device Compatibility
Adaptable to various testing needs, supports up to 384 channels for any WLCSP or packaged device footprint.
Product Details & More
Here, you'll find helpful links, PDF downloads for manuals and brochures, and related blog posts. For further assistance, please contact our customer support team.
Here, you'll find helpful links, PDF downloads for manuals and brochures, and related blog posts. For further assistance, please contact our customer support team.

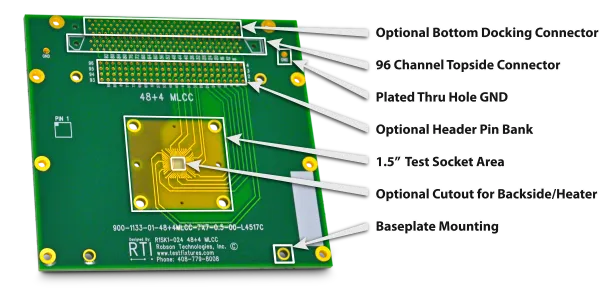

RSK Series Breakout Test Fixtures Overview
The RSK Series breakout test fixtures allow thorough device inspection with easy access to both sides of the DUT. We engineer our fixtures to meet the demands of modern testing environments, from benches to probe stations and high-end inspection tools. The RSK Series has a sleek design that seamlessly integrates into different setups, reducing interference and improving efficiency. If you need precise hand testing, detailed failure analysis, and advanced inspection methods, these breakout fixtures are the ideal choice because of their focus on simplicity and improved device accessibility.
Key Features:
- Low-Profile Design: Compact and efficient, allowing for easy integration into various test environments.
- Customizable Options: Tailor the standoff lengths, connector configurations, and board assembly methods to suit your specific testing needs.
Configuration Options:
- Connector Placement: Choose between topside or bottom-side connector installations to match your test setup.
- Manual Probing Support: Header Pin Banks positioned near connectors for easy manual probing or jumping.
- Thermal Management: Optional heater block installation in the socket, compatible with RTI's Temperature Controllers for precise temperature control.
Accessories and Customizations:
- Cable Options: Available in standard lengths of 3ft and 6ft, with custom lengths ranging from 1ft to 10ft to accommodate your lab setup.
- Shorting Connectors: Efficient diagnostic tool to tie all signals on the connector to GND, enabling rapid opens-diagnostics.
- Permanent Docking Fixtures: For more stable benchtop setups, enhanced with improved cable management and docking interfaces for various models.

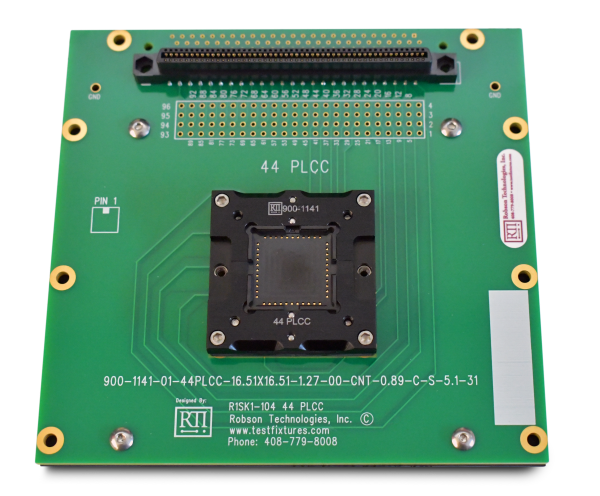

R1SK
Dimensions: 4.5" x 4.3"
Typical Pin Count: 3 – 96

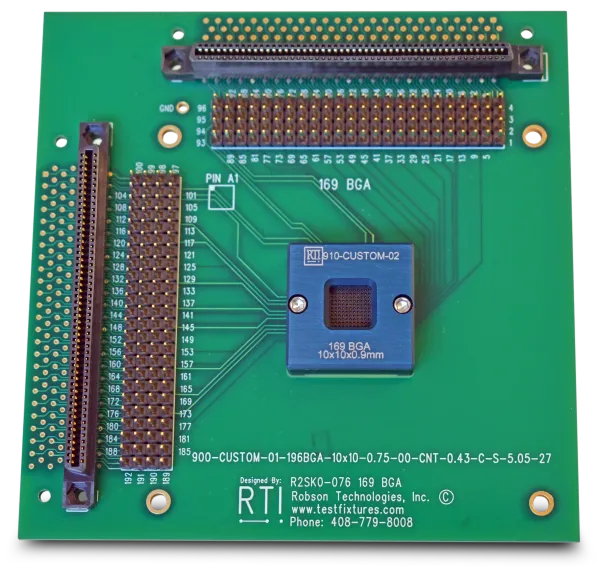

R2SK
Dimensions: 4.4" x 4.4"
Typical Pin Count: 97 – 192

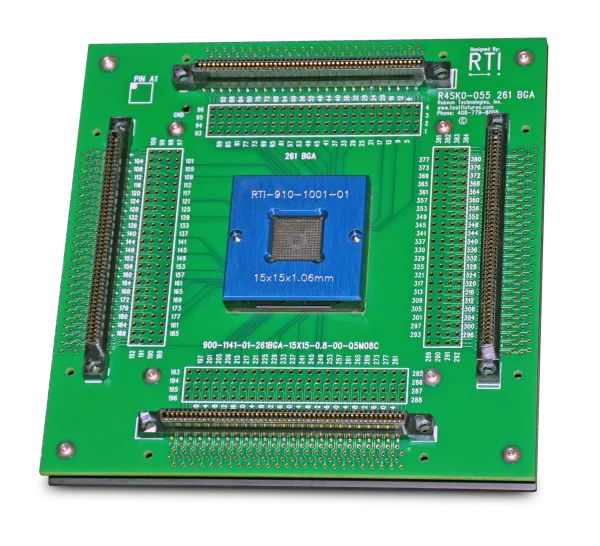

R4SK
Dimensions: 5.2" x 5.2"
Typical Pin Count: 193 – 384

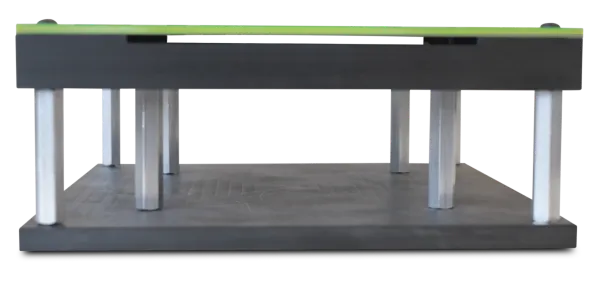

RSK Baseplates + Standoffs
All RSK Series include a baseplate with variable standoff lengths for securing to a vacuum chuck or standing alone on the bench. Provides clearance when RSK Series boards are inverted for backside access.
RTI's RSK Series Gallery
Click on an image to expand.
